An Uninterruptible Power Supply (UPS) is a device used to provide emergency power to a load when the input power source, typically mains power, fails. UPS systems are essential for critical equipment and applications that cannot tolerate even momentary power interruptions, such as servers, data centers, medical equipment, and telecommunications systems.
|
Capacity |
10000VA/10000W |
|
INPUT |
|
|
Nominal Voltage |
208/220/230 (Default) / 240Vac |
|
Input Voltage Range |
110~300Vac(110~300Vac@50% load/176~300Vac@100% load) |
|
Power Factor |
＞0.99 |
|
OUTPUT |
|
|
Output Voltage |
208/220/230 (Default) / 240Vac |
|
Voltage Regulation |
±1% |
|
INDICATORS |
|
|
LED Display |
Online mode, Bat.mode, ECO mode, Bypass mode, Battery low voltage, Overload & UPS fault |
|

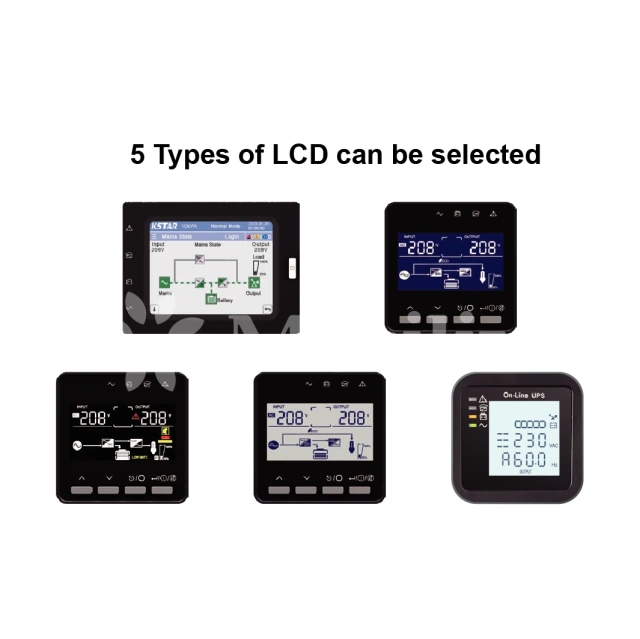

LCD Display |
Input voltage, Input frequency, Input current, Output voltage, Output frequency, Output current, Load percentage, Battery voltage, Battery chariging/ discharging current, Ambient temperature & Remaining battery backup time |
|
PHYSICAL |
|
|
Dimension W×D×H |
440×621.5×175(4U)mm |
|
Net Weight |
75kg |
