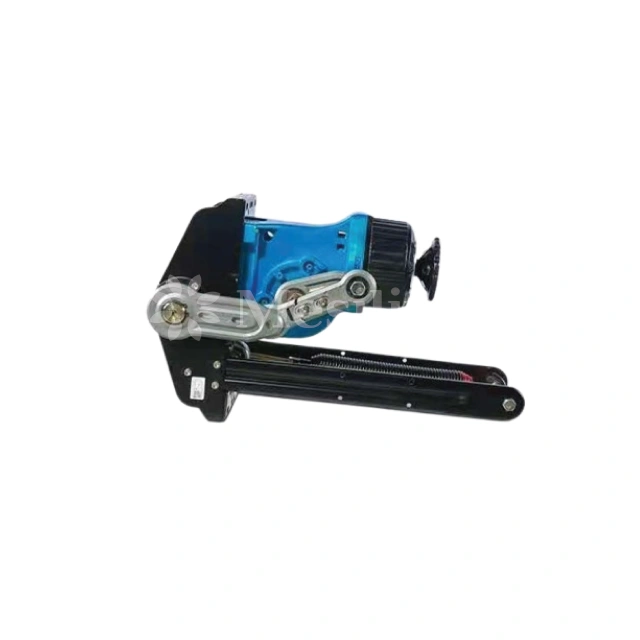

Barrier Gate | High-Grade DC Brushless Barrier Gate

Name: Barrier Gate | High-Grade DC Brushless Barrier Gate
Brand: MESILIX | UPS, Server Racks & Accessories
SKU: MSLBG102 (2.5-4.5m)
Availability: InStock
Rating: 5 (1 reviews)

No.MSLBG102 (2.5-4.5m)

Built-in delay auto-closing and reverse on obstacle in case of resistance
Support infrared photocell, loop detector, and external radar and built-in DC12V power output.
Standard fitting with 433MHZ learning code remote control,convenient and quick to add configuration.
Holes are available to fix the articulated or fence boom, and multiple boom types on one machine can
be easily changed.
When power off, the barrier gate can still work by adding 2 external DC12V batteries. And battery
charging module is optional, when power on, the battery will automatically charge.
Driven by DC brushless motor, equipped with movable connecting rod transmission mechanism and
balance spring, stable and reliable operation. Motor life cycle up to 2,500,000 times or more, and spring
life cycle up to 500,000 times.

GET A QUOTE

Description

MSLBG102 (2.5-4.5m)
High-Grade DC Brushless Barrier Gate

Specifications

Model	WJDZE-BL(speed 1.5~6S adjustable)
Running Speed	1.5S	3S	4S	5/6S	6S	6S	6S	6S
Boom Type	Straight	Straight	Straight	Straight	90* Folding	90* Folding	2 Fence	3 Fence
Max Boom Length	3M	4.5M	5M	6M	5M	4M	4.5M	4M
Input Voltage	AC220V±10%，AC110V±10%
Frequency	50/60HZ
Motor Voltage	DC24V
Power Supply	DC 12V/1A
Enclosure Rating	Ip54
MTBF	2,500,000times
Traffic Flow Application	1500 times/24 hours
Working Temperature	-35° C~+85° C
Max Motor Power	200W
Max Motor Speed	24r/min

Datasheet

Download Datasheet
