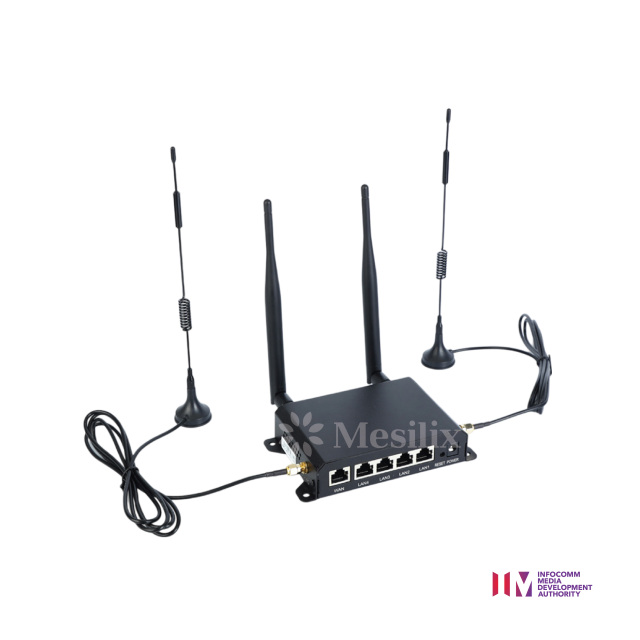

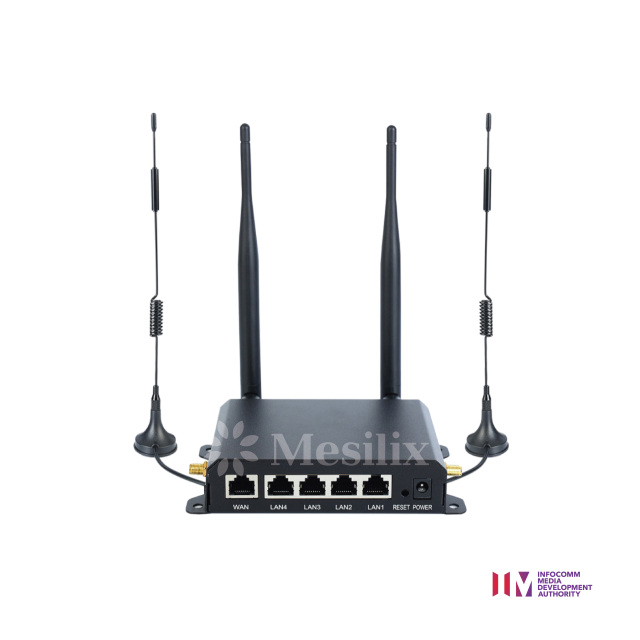

4G Router | 2.4G 300Mbps 4G Industrial LTE Router

CPU Chipset

MT7628

DDR

64MB

FLASH

8MB

Protocols Comply

IEEE802.11 b/g/n, IEEE802.3u

WiFi Data Rate

MIMO 2*2 300Mbps@2.4G

Reset Button

Restore factory default settings

Power Supply

DC 12V/1A

Ethernet Ports

1 WAN + 4 LAN (10/100Mbps)

4G Modem

1x mini PCI-E slot

Modulation Type

OFDM/BPSK/QPSK/CCK/DQPSK/DBPSK

Frequency Range

2.412 GHz ~ 2.472 GHz (Channel 1 ~13)

Data Transfer Rate (2.4G)

11b: 11M, 5.5M, 2M, 1Mbps
11g: 54M, 48M, 36M, 24M, 18M, 12M, 9M, 6Mbps
HT20:6.5M, 13M, 19.5M, 26M, 39M, 52M, 58.5M,
65M,13M,26M,39M,52M,78M,104M,117M 81M, 104M, 108M, 117M,130M
HT40:13.5M,27M,40.5M,54M,81M,108M,121.5M,135M,27M,54M,81M,108M,1
62M,216M,243M,270M

RF Power (2.4G)

802.11b(-10@EVM) 18.0± 2.0dBm
802.11g(-25@EVM) 16.0± 2.0dBm
802.11n(-28@EVM) 14.0± 2.0dBm

Receiver sensitivity(2.4G)

IEEE 802.11b
1Mbps≦-90dBm
11Mbps≦-87dBm
