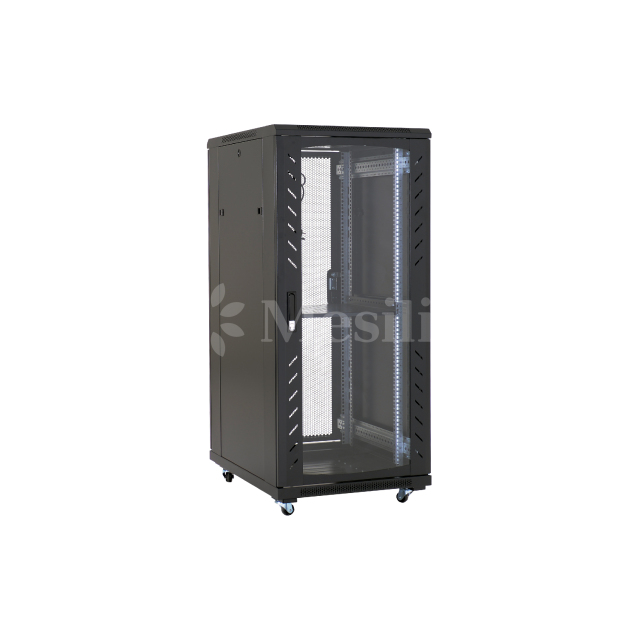

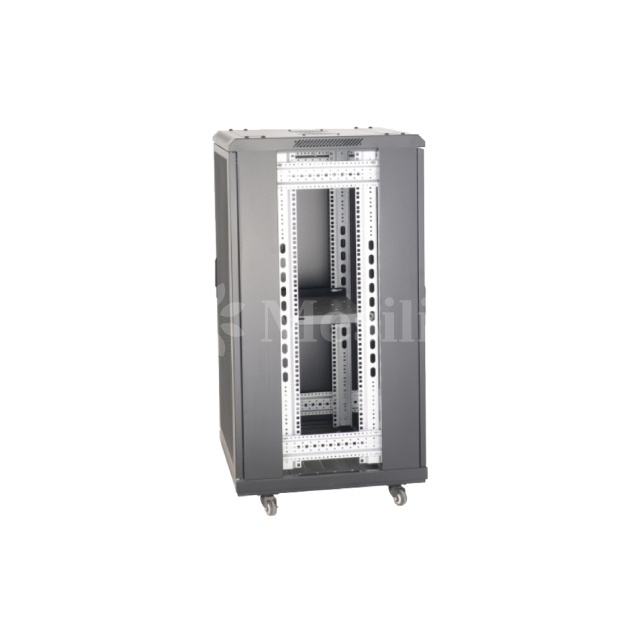

22U Server Rack (Floor Standing)

No.Rack-FS8022 | Rack-FS8822 | Rack-FS6022 | Rack-FS6822 | Rack-FS6622
  • 19" standard width
  • Easy mounting installation
  • Turning angle of front door is over 180 degrees
Type:
800 x 1000
800 x 800
600 x 1000
600 x 800
600 x 600
  • 22U Server Rack (Floor Standing)
  • 22U Server Rack (Floor Standing)

Description

Rack-FS8022 | Rack-FS8822 | Rack-FS6022 | Rack-FS6822 | Rack-FS6622
22U Server Rack (Floor Standing)

Unlike wall-mounted counterparts, floor standing server racks are designed to stand independently on the floor, offering flexibility in deployment within server rooms, data centers, or larger office spaces. Their sturdy construction and ample internal space make them suitable for housing a variety of rack-mountable equipment, such as servers, switches, patch panels, and other networking components.

• Assembled Package
• Knock off hole for entering cable on both top cover, bottom panel, real panel


Model Name Width
(mm)
Depth
(mm)
Height (mm)  Vol. (CBM) Components
Rack-FS8022 800 1000 1166 1.037 4 fans + 4 shelves + 1 PDU + 2 side panel lock + 1 pair vertical cable management
Rack-FS8822 800 800 1166 0.837 4 fans + 4 shelves + 1 PDU + 2 side panel lock + 1 pair vertical cable management
Rack-FS6022 600 1000 1166 0.789 4 fans + 4 shelves + 1 PDU + 2 side panel lock
Rack-FS6822 600 800 1166 0.636 4 fans + 4 shelves + 1 PDU + 2 side panel lock
Rack-FS6622 600 600 1166 0.484 2 fans + 4 shelves + 1 PDU (6 Way)  + 2 side panel lock
