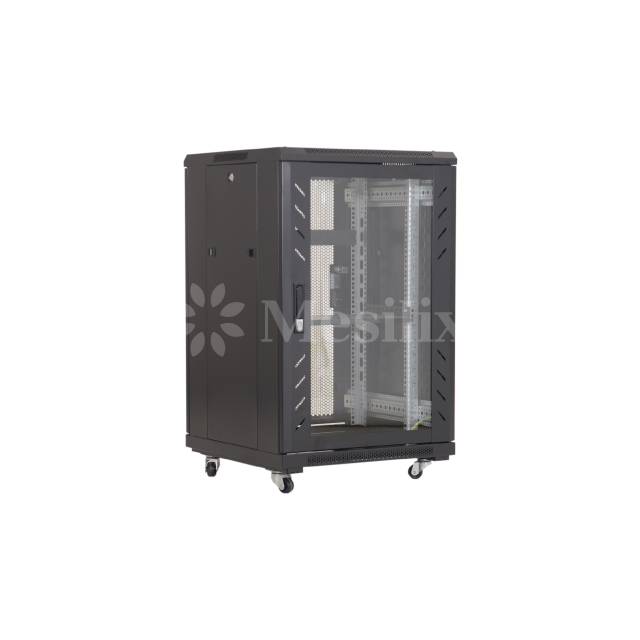

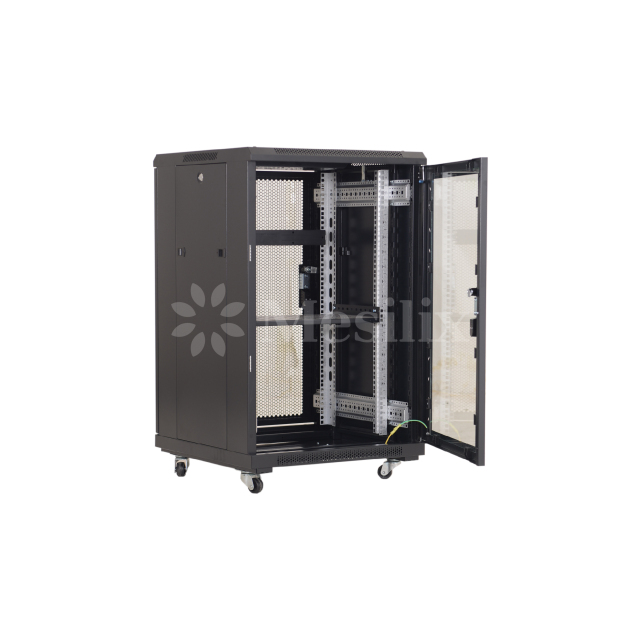

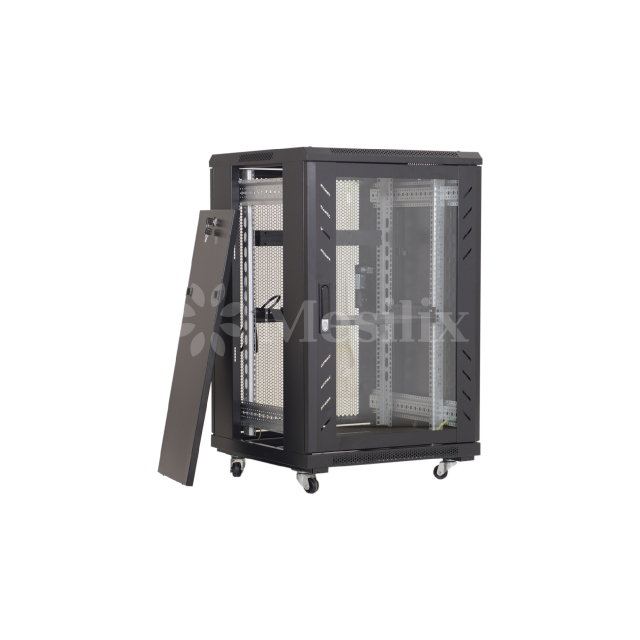

18U Server Rack (Floor Standing)

No.Rack-FS8018 | Rack-FS8818 | Rack-FS6018 | Rack-FS6818 | Rack-FS6618

19" standard width
Easy mounting installation
Turning angle of front door is over 180 degrees

Type:

800 x 1000

800 x 800

600 x 1000

600 x 800

600 x 600

GET A QUOTE

Description

Rack-FS8018 | Rack-FS8818 | Rack-FS6018 | Rack-FS6818 | Rack-FS6618
18U Server Rack (Floor Standing)

Unlike wall-mounted counterparts, floor standing server racks are designed to stand independently on the floor, offering flexibility in deployment within server rooms, data centers, or larger office spaces. Their sturdy construction and ample internal space make them suitable for housing a variety of rack-mountable equipment, such as servers, switches, patch panels, and other networking components.

• Assembled Package
• Knock oﬀ hole for entering cable on both top cover, bottom panel, real panel

Model Name	Width (mm)	Depth (mm)	Height (mm)	Vol. (CBM)	Components
Rack-FS8018	800	1000	988	0.864	4 fans + 4 shelves + 1 PDU + 2 side panel lock + 1 pair vertical cable management
Rack-FS8818	800	800	988	0.697	4 fans + 4 shelves + 1 PDU + 2 side panel lock + 1 pair vertical cable management
Rack-FS6018	600	1000	988	0.657	4 fans + 4 shelves + 1 PDU + 2 side panel lock
Rack-FS6818	600	800	988	0.530	4 fans + 4 shelves + 1 PDU + 2 side panel lock
Rack-FS6618	600	600	988	0.403	2 fans + 4 shelves + 1 PDU (6 Way) + 2 side panel lock

Datasheet

Download Datasheet
